Description
This kit includes everything you need for fully hydraulic steering. The pump has a steel body and a flow rate of 4.5 GPM and a pressure of 1650 PSI.
All high pressure hoses are made of steel mesh and have already pressed fittings.
Our kit is the most complete on the market.
FULL HYDRO complete steering kit
This kit includes everything you need for fully hydraulic steering. The pump has a steel body and a flow rate of 4.5 GPM and a pressure of 1650 PSI.
All high pressure hoses are made of steel mesh and have already pressed fittings.
Our kit is the most complete on the market.
The kit was created for Toyota axles but can be adapted to other vehicles or prototypes (by adapting the brackets and steering rods)
The pump, bracket, and belt are compatible with Toyota 4-cylinder and V6 gasoline engines. For diesel and other engines, the pump and brackets must be adapted to your needs.
Please indicate the model when ordering:
6" piston and 100ml orbital
8" piston and 125ml orbital
10" piston and 160ml orbital
Note: Never use ATF or semi-synthetic fluid. This will void the warranty. Fully synthetic power steering fluids are recommended.
NEW
FOR INFO 3293821382
All high pressure hoses are made of steel mesh and have already pressed fittings.
Our kit is the most complete on the market.

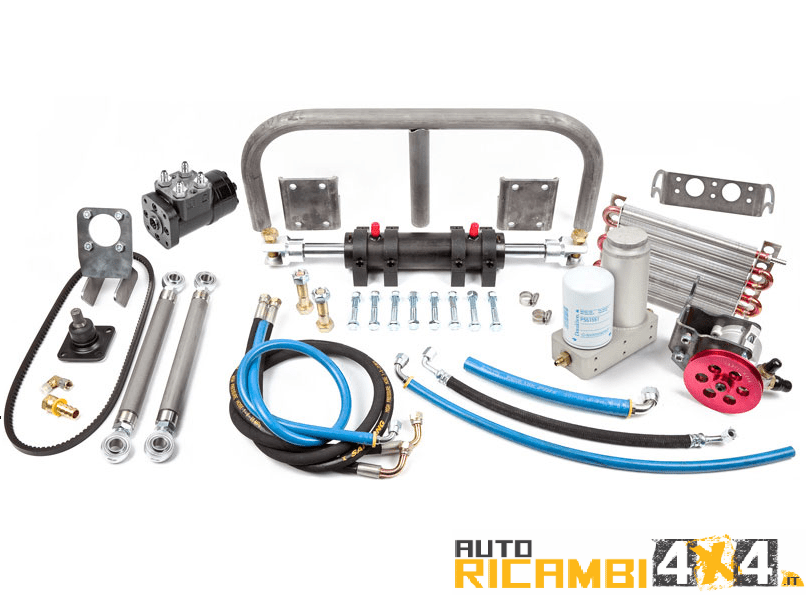

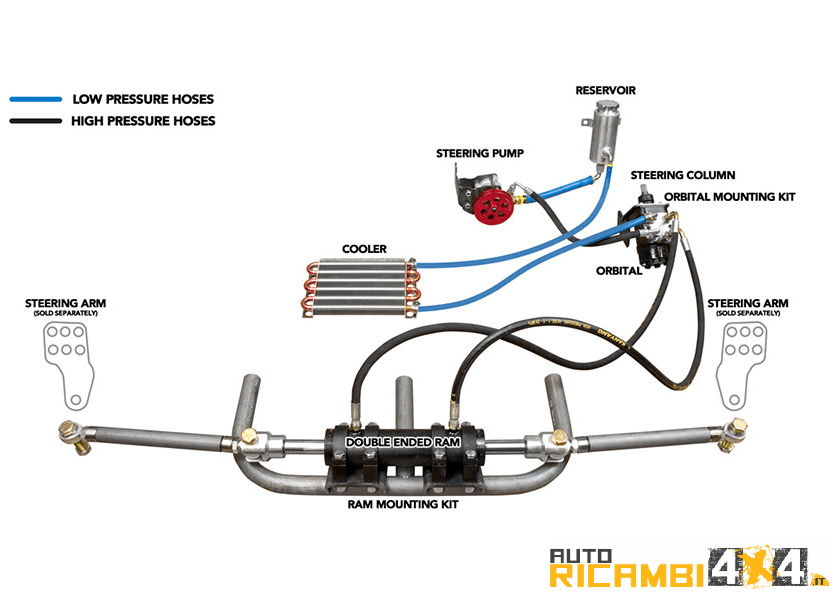

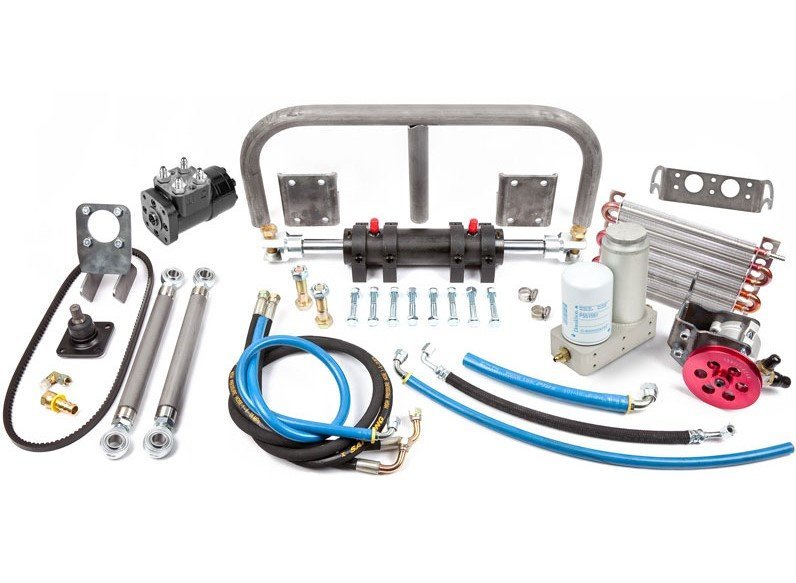

THE KIT INCLUDES:
- 6", 8", or 10" stroke dual outlet piston and mounting collars
- Orbital valve (100ml, 125ml, or 160ml)
- Power steering pump with pulley
- Steering rod kit with Uniball
- Hydraulic piston fixing kit
- Steering column for orbital valve
- Orbital valve support plates
- Oil tank with filter
- Oil tank support
- Radiator
- Power steering pump belt
- Pipe and fitting kit
- Bolts and nuts
FULL HYDRO complete steering kit
This kit includes everything you need for fully hydraulic steering. The pump has a steel body and a flow rate of 4.5 GPM and a pressure of 1650 PSI.
All high pressure hoses are made of steel mesh and have already pressed fittings.
Our kit is the most complete on the market.
THE KIT INCLUDES:
- 6", 8", or 10" stroke dual outlet piston and mounting collars
- Orbital valve (100ml, 125ml, or 160ml)
- Power steering pump with pulley
- Steering rod kit with Uniball
- Hydraulic piston fixing kit
- Steering column for orbital valve
- Orbital valve support plates
- Oil tank with filter
- Oil tank support
- Radiator
- Power steering pump belt
- Pipe and fitting kit
- Bolts and nuts
The kit was created for Toyota axles but can be adapted to other vehicles or prototypes (by adapting the brackets and steering rods)
The pump, bracket, and belt are compatible with Toyota 4-cylinder and V6 gasoline engines. For diesel and other engines, the pump and brackets must be adapted to your needs.
Please indicate the model when ordering:
6" piston and 100ml orbital
8" piston and 125ml orbital
10" piston and 160ml orbital
Note: Never use ATF or semi-synthetic fluid. This will void the warranty. Fully synthetic power steering fluids are recommended.
NEW
FOR INFO 3293821382
