Description
LIFT KIT +5 NISSAN PATROL TR/SAFARI/K160/K260 3.3 TD
APPLICATION: NISSAN PATROL 3.3TD
DESCRIPTION: LIFT KIT +50

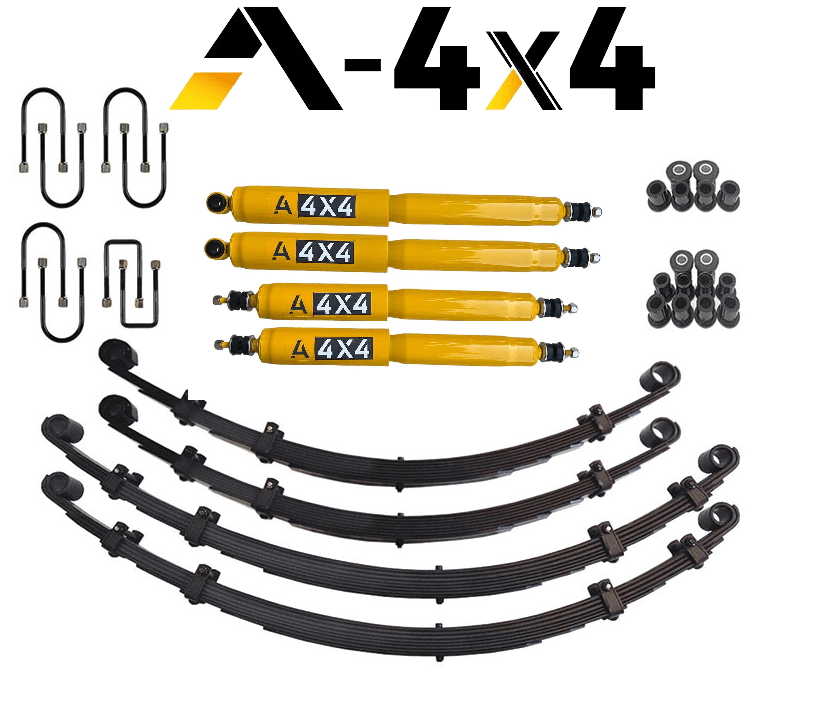

The Kit includes:
- 2 front leaf springs
- 2 rear leaf springs
- 2 front shock absorbers
- 2 rear shock absorbers
- 1 pair of U-bolts
- 1 pair of U-bolts
- 2 pairs of jumpers
- 1 front reinforced leaf spring bushing kit
- 1 kit of rear reinforced leaf spring bushings
FRONT LEAF SPRING DESCRIPTION:
- eye center / eye center measurement 105.5cm
REAR LEAF SPRING DESCRIPTION:
- eye center / eye center measurement 133cm
FRONT SHOCK ABSORBERS DESCRIPTION:
- extended size 487mm
- closed size 296mm
- upper pin length 60mm / diameter 10mm
- lower pin length 60mm / diameter 10mm
REAR SHOCK ABSORBERS DESCRIPTION:
- extended size 583mm
- closed size 347mm
- upper eye diameter 16mm
- lower pin length 60mm / diameter 10mm
NOTE: LIFT KIT +5cm
