LIFT KIT +50 JEEP WRANGLER TJ IRONMAN
APPLICATION:
JEEP WRANGLER TJ
DESCRIPTION REAR SHOCK ABSORBERS code 12669GR:
- measurement between center and hole 77mm
DESCRIPTION: LIFT KIT +50

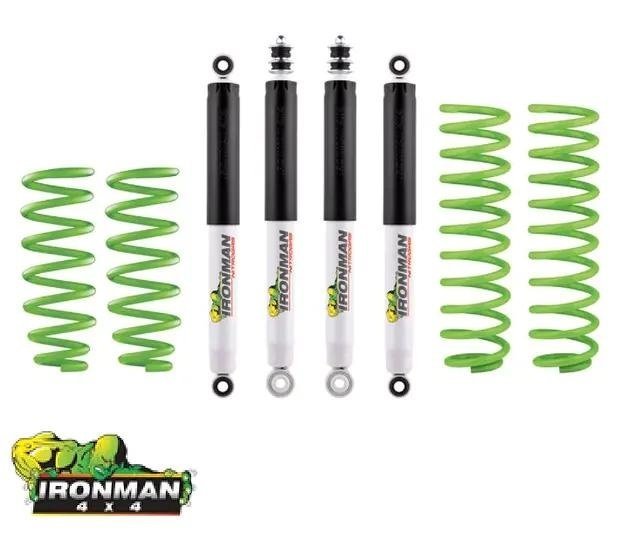

The Kit includes:
- 1 pair of front springs code JEEP-007B
- 1 pair of rear springs code JEEP-008B
- 2 front shock absorbers code 12665GR
- 2 rear shock absorbers code 12669GR
APPLICATION:
JEEP WRANGLER TJ
D ESCRIPTION OF FRONT SPRINGS code JEEP-007B:
- height 440mm
- coil diameter 15mm
- internal diameter 66/100mm
D ESCRIPTION OF REAR SPRINGS code JEEP-008B:
- height 345mm
- coil diameter 16mm
- internal diameter 72mm
D ESCRIPTION FRONT SHOCK ABSORBERS code 12665GR:
- extended size 565mm
- closed size 345mm
- upper pin diameter 10mm
- upper pin length 60mm
- lower mustache:
- measurement between center and hole 62mm
- hole diameter 11.5mm
DESCRIPTION REAR SHOCK ABSORBERS code 12669GR:
- extended size 560mm
- closed size 340mm
- upper mustache:
- measurement between center and hole 77mm
- hole diameter 13mm
- lower eye diameter 12.5mm
NOTE: LIFT KIT +5cm
Units in the box: 1 kit
