Description
LIFT KIT +5 JEEP WRANGLER JK
LIFT KIT +5 JEEP WRANGLER JK
APPLICATION:
JEEP WRANGLER JK
DESCRIPTION REAR SHOCK ABSORBERS code 20752:
- measurement between center and hole 80mm
NOTE: LIFT KIT +5cm
LIFT KIT +5 JEEP WRANGLER JK
DESCRIPTION: LIFT KIT +50

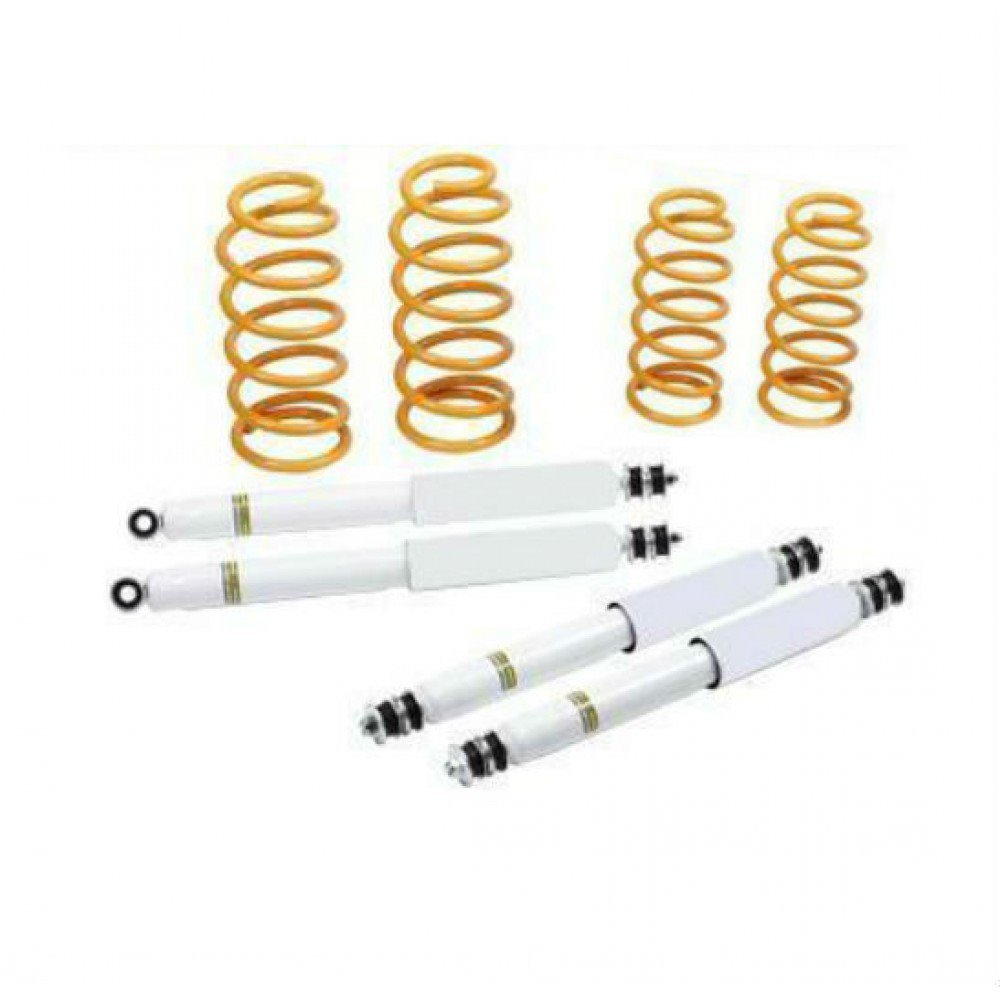

The Kit includes:
- 1 pair of front springs code JPJKA
- 1 pair of rear springs code JPJKP
- 2 front shock absorbers code 20751
- 2 rear shock absorbers code 20752
APPLICATION:
JEEP WRANGLER JK
D ESCRIPTION OF FRONT SPRINGS code JPJKA:
- height 460mm
- coil diameter 15mm
- internal diameter 73/103mm
D ESCRIPTION OF REAR SPRINGS code JPJKP:
- height 388mm
- coil diameter 16mm
- internal diameter 52/103mm
D ESCRIPTION OF FRONT SHOCK ABSORBERS code 20751:
- extended size 575mm
- closed size 325mm
- upper pin diameter 14mm
- upper pin length 70mm
- lower eye diameter 12mm
DESCRIPTION REAR SHOCK ABSORBERS code 20752:
- extended size 617mm
- closed size 374mm
- upper mustache:
- measurement between center and hole 80mm
- hole diameter 10mm
- lower eye diameter 12mm
NOTE: LIFT KIT +5cm
Units in the box: 1 kit
