Description
The XTREME OUTBACK STAGE 1A REINFORCED CLUTCH KIT uses a reinforced clutch pressure plate with a load capacity of 700Kg with an increase over the standard clutch of 40% and combined with an ORGANIC clutch disc which offers substantial increases in performance and power holding ability, whilst maintaining excellent drivability without jerking, and is designed primarily for high performance, heavy duty on road vehicles and also for towing vehicles.
(MAKE SURE THE DISC DIAMETER IS 235MM. IF IT IS 225MM, PURCHASE THE ROUND HEADLIGHT CLUTCH)

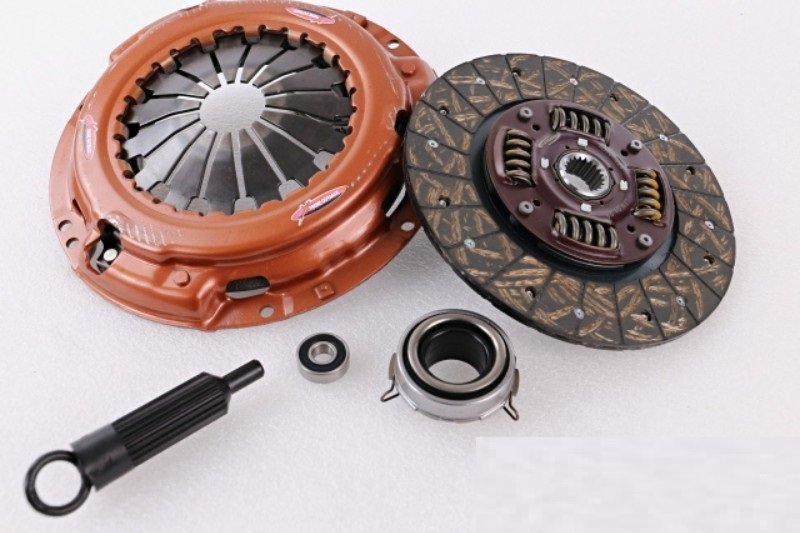

The kit includes:
-PUSHER with increased load of 700Kg (+40%)
-CLUTCH DISC in ORGANIC material for excellent driveability
-BEARING
-CLUTTERS
Technical data:
Torque capacity: 360NM
load capacity: 700Kg (+40%)
clutch disc diameter: 235mm
spline number: 21
spline diameter: 29.8mm
XTREME OUTBACK STAGE 1A HEAVY DUTY CLUTCH KIT TOYOTA LAND CRUISER LJ70 SQUARE HEADLIGHT TOYOTA LAND CRUISER LJ73 SQUARE HEADLIGHT XTREME OUTBACK clutches manufactured by ACS Australia are recognised as being among the best and strongest in the world. The XTREME OUTBACK STAGE 1A HEAVY DUTY CLUTCH KIT utilises a reinforced 700kg load capacity pressure plate, an increase of 40% over the standard clutch, combined with an ORGANIC clutch disc which offers substantial increases in performance and power holding ability whilst maintaining excellent jerk-free driveability, and is designed primarily for high performance, heavy duty on road vehicles and also for towing vehicles. (CHECK THAT THE DISC DIAMETER IS 235MM, IF IT IS 225MM BUY THE CLUTCH FOR ROUND HEADLIGHT) the kit includes: - PRESSURE PLATE with increased load of 700Kg (+40%) - CLUTCH DISC in ORGANIC material for excellent driveability - BEARING - CLUTCH CENTER technical data: torsional capacity: 360NM load capacity: 700Kg (+40%) clutch disc diameter: 235mm number of splines: 21 spline diameter: 29.8mm NEW FOR INFO 3293821382
