Description
XTREME OUTBACK clutches made by ACS Australia are recognised as being among the best and strongest in the world.
The XTREME OUTBACK STAGE 1AX EXTRA REINFORCED CLUTCH KIT uses an extra reinforced clutch pressure plate with a load capacity of 1050Kg with an increase over the standard clutch of 100% and combined with an ORGANIC clutch disc which offers substantial increases in performance and power holding ability, whilst maintaining excellent drivability without jerking, and is designed primarily for high performance, heavy duty on road vehicles and also for towing vehicles.

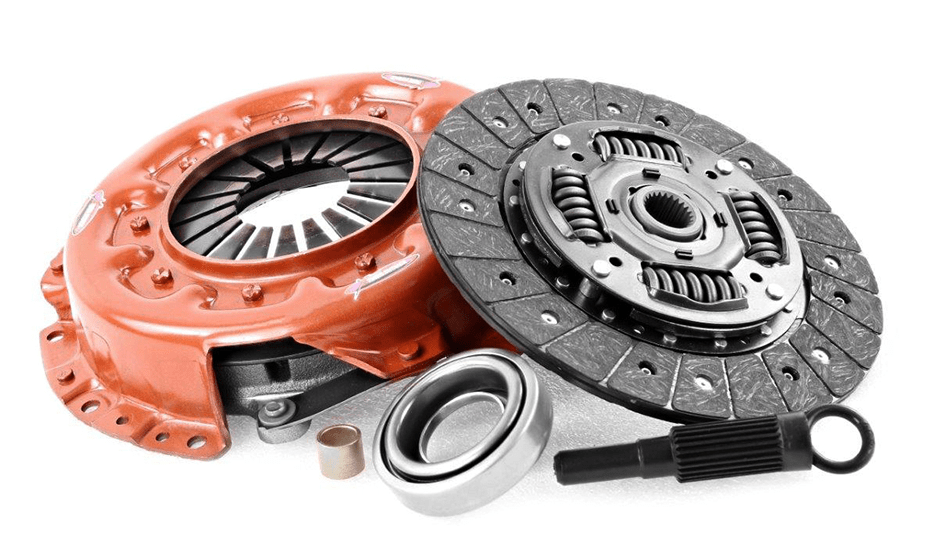

The kit includes:
-PUSHER with increased load (+90%)
-CLUTCH DISC in ORGANIC material for excellent driveability
-BEARING
-CLUTTERS
Technical data:
Torque capacity: 610NM
load capacity: (+90%)
clutch disc diameter: 240mm
spline number: 24
spline diameter: 25.4mm
EXTRA HEAVY DUTY XTREME OUTBACK STAGE 1AX CLUTCH KIT FOR NISSAN PATROL GR Y60 2.8 TD NB: For Patrol GR 1989-1990 the bearing supplied may not be compatible and the original bearing must be reused XTREME OUTBACK clutches manufactured by ACS Australia are recognised as being among the best and strongest in the world. The XTREME OUTBACK STAGE 1AX CLUTCH KIT utilises an extra strengthened pressure plate with an increase over the standard clutch of 100% and combined with an ORGANIC clutch disc which offers substantial increases in performance and power holding ability whilst maintaining excellent jerk-free driveability and is designed primarily for high performance, heavy duty on road vehicles and also for towing vehicles. the kit includes: - PRESSURE PLATE with increased load (+90%) - CLUTCH DISC in ORGANIC material for excellent driveability - BEARING - CLUTCH CENTER technical data: torsional capacity: 610NM load capacity: (+90%) clutch disc diameter: 240mm number of splines: 24 spline diameter: 25.4mm
The XTREME OUTBACK STAGE 1AX EXTRA REINFORCED CLUTCH KIT uses an extra reinforced clutch pressure plate with a load capacity of 1050Kg with an increase over the standard clutch of 100% and combined with an ORGANIC clutch disc which offers substantial increases in performance and power holding ability, whilst maintaining excellent drivability without jerking, and is designed primarily for high performance, heavy duty on road vehicles and also for towing vehicles.
The kit includes:
-PUSHER with increased load (+90%)
-CLUTCH DISC in ORGANIC material for excellent driveability
-BEARING
-CLUTTERS
Technical data:
Torque capacity: 610NM
load capacity: (+90%)
clutch disc diameter: 240mm
spline number: 24
spline diameter: 25.4mm
EXTRA HEAVY DUTY XTREME OUTBACK STAGE 1AX CLUTCH KIT FOR NISSAN PATROL GR Y60 2.8 TD NB: For Patrol GR 1989-1990 the bearing supplied may not be compatible and the original bearing must be reused XTREME OUTBACK clutches manufactured by ACS Australia are recognised as being among the best and strongest in the world. The XTREME OUTBACK STAGE 1AX CLUTCH KIT utilises an extra strengthened pressure plate with an increase over the standard clutch of 100% and combined with an ORGANIC clutch disc which offers substantial increases in performance and power holding ability whilst maintaining excellent jerk-free driveability and is designed primarily for high performance, heavy duty on road vehicles and also for towing vehicles. the kit includes: - PRESSURE PLATE with increased load (+90%) - CLUTCH DISC in ORGANIC material for excellent driveability - BEARING - CLUTCH CENTER technical data: torsional capacity: 610NM load capacity: (+90%) clutch disc diameter: 240mm number of splines: 24 spline diameter: 25.4mm
