Description

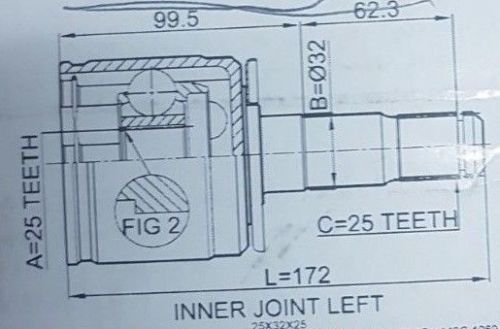

| Assembly area | on the gearbox side , Front axle left |
|---|---|
| External teeth on the differential side | 25 |
| Internal teeth, differential side, gearbox connection | 25 |
| Elastic band diameter | 32 mm |
| External diameter | 86 mm |
|
L 200 (K3_T, K2_T, K1_T, K0_T) 2.0 4WD Transmission type: MT
|
02.1987 - 05.1994 | 59324 | 63 | 86 | 1997 | Pick-up | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L 200 (K3_T, K2_T, K1_T, K0_T) 2.5 D 4WD (K24T) Transmission type: MT
Left/Right Hand Drive Vehicle: For Left Hand Drive Vehicle
|
12.1987 - 05.1993 | 6118 | 51 | 70 | 2476 | Pick-up | |||||||||
|
L 200 (K3_T, K2_T, K1_T, K0_T) 2.5 D 4WD (K24T)
Transmission type: MT
Left/Right Hand Drive Vehicle: For Right Hand Drive Vehicle
|
12.1987 - 05.1993 | 6118 | 51 | 70 | 2476 | Pick-up | |||||||||
|
L 200 (K3_T, K2_T, K1_T, K0_T) 2.5 TD 4WD (K34T) Transmission type: MT
|
11.1992 - 08.1996 | 5598 | 64 | 87 | 2477 | Pick-up | |||||||||
|
L 200 (K3_T, K2_T, K1_T, K0_T) 2.6 4WD (K33T) Transmission type: MT
Left/Right Hand Drive Vehicle: For Left Hand Drive Vehicle
|
11.1989 - 05.1995 | 9221 | 76 | 103 | 2555 | Pick-up | |||||||||
|
L 200 (K7_T, K6_T) 2.4 4WD (K75T) Transmission type: MT
Left/Right Hand Drive Vehicle: For Left Hand Drive Vehicle
|
06.1996 - 12.2007 | 8738 | 97 | 132 | 2351 | Pick-up | |||||||||
| L 200 (K7_T, K6_T) 2.5 TD 4WD | 06.1996 - 12.2007 | 8740 | 73 | 99 | 2477 | Pick-up | |||||||||
| L 200 (K7_T, K6_T) 2.5 TD 4WD (K74T) | 09.2001 - 12.2007 | 17459 | 85 | 115 | 2477 | Pick-up | |||||||||
| L 200 (K7_T, K6_T) 2.5 TD 4WD (K74T) | 08.2001 - 12.2007 | 17755 | 98 | 133 | 2477 | Pick-up | |||||||||
|
L 300 III Bus (P0_W, P1_W, P2_W) 2.0 4WD (P23W, P03W, P13W) Production date up to: 200305
Transmission type: MT
|
12.1986 - 05.2004 | 3402 | 65 | 88 | 1997 | Bus | |||||||||
|
L 300 III Bus (P0_W, P1_W, P2_W) 2.0 4WD (P23W, P03W, P13W) Production date up to: 200305
Transmission type: MT
|
11.1986 - 05.2004 | 3406 | 66 | 90 | 1997 | Bus | |||||||||
|
L 300 III Bus (P0_W, P1_W, P2_W) 2.4 4WD (P24W) Production date from - to: 199108 - 199403
Transmitter type: AT
|
08.1986 - 05.2004 | 3408 | 82 | 112 | 2351 | Bus | |||||||||
|
L 300 III Bus (P0_W, P1_W, P2_W) 2.5 TD 4WD (P25W) Production date up to: 199906
Transmitter type: AT
|
11.1988 - 05.2004 | 3410 | 64 | 87 | 2477 | Bus | |||||||||
|
L 400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W) 2.4 4WD Production date up to: 199705
Transmitter type: AT
|
09.1996 - 06.2005 | 54970 | 94 | 128 | 2351 | Bus | |||||||||
|
L 400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W) 2.4 i 4WD (PD4V/W) Production date up to: 199705
Transmitter type: AT
|
05.1995 - 05.2000 | 4783 | 97 | 132 | 2351 | Bus | |||||||||
|
L 400 Bus (PD_W, PC_W, PA_V, PB_V, PA_W) 2.5 TD 4WD (PD5V/W) Production date up to: 199904
|
05.1995 - 05.2000 | 4786 | 73 | 99 | 2477 | Bus | |||||||||
|
L 400 Box (PD_W, PC_W, PB_V, PA_W, PA_V) 2500 TD 4WD (PD5W, PD5V, PA5W, PA5V) Production date up to: 199904
|
09.1996 - 06.2005 | 18401 | 64 | 87 | 2477 | Van | |||||||||
|
L 400 Box (PD_W, PC_W, PB_V, PA_W, PA_V) 2500 TD 4WD (PD5W, PD5V, PA5W, PA5V) Production date up to: 200305
Transmission type: MT
Left/Right Hand Drive Vehicle: For Left Hand Drive Vehicle
|
09.1996 - 06.2005 | 18401 | 64 | 87 | 2477 | Van | |||||||||
|
PAJERO I (L04_G, L14_G) 2.5 TD (L044G, L049G) Production date up to: 199012
|
04.1987 - 12.1991 | 3385 | 64 | 87 | 2477 | Closed off-road vehicle | |||||||||
|
PAJERO I (L04_G, L14_G) 2.5 TD (L044G, L049G) Production date up to: 199106
Transmission type: MT
|
04.1987 - 12.1991 | 3385 | 64 | 87 | 2477 | Closed off-road vehicle | |||||||||
|
PAJERO I (L04_G, L14_G) 2.5 TD (L044G, L049G) Production date from: 199001
Transmitter type: AT
|
11.1989 - 11.1990 | 3386 | 70 | 95 | 2477 | Closed off-road vehicle | |||||||||
|
PAJERO I (L04_G, L14_G) 2.5 TD (L044G, L049G) Transmission type: MT
|
11.1989 - 11.1990 | 3386 | 70 | 95 | 2477 | Closed off-road vehicle | |||||||||
|
PAJERO I Canvas Top (L04_G) 2.3 TD (L043G, L048G) Production date from - to: 198504 - 198603
Transmitter type: AT
|
12.1982 - 04.1986 | 3383 | 62 | 84 | 2347 | Open off-road vehicle | |||||||||
|
PAJERO I Canvas Top (L04_G) 2.3 TD (L043G, L048G) Transmission type: MT
|
12.1982 - 04.1986 | 3383 | 62 | 84 | 2347 | Open off-road vehicle | |||||||||
| PAJERO I Canvas Top (L04_G) 2.5 TD (L044G, L049G) | 05.1986 - 10.1989 | 3384 | 62 | 84 | 2477 | Open off-road vehicle | |||||||||
|
PAJERO I Canvas Top (L04_G) 2.5 TD (L044G, L049G) Production date from: 199001
Transmitter type: AT
|
11.1989 - 11.1990 | 3387 | 70 | 95 | 2477 | Open off-road vehicle | |||||||||
|
PAJERO I Canvas Top (L04_G) 2.5 TD (L044G, L049G) Transmission type: MT
|
11.1989 - 11.1990 | 3387 | 70 | 95 | 2477 | Open off-road vehicle | |||||||||
|
PAJERO I Canvas Top (L04_G) 2.6 (L042G, L047G) Production date from - to: 198605 - 198805
|
01.1983 - 11.1990 | 3382 | 76 | 103 | 2555 | Open off-road vehicle | |||||||||
|
PAJERO I Canvas Top (L04_G) 2.6 (L042G, L047G) Transmission type: MT
|
01.1983 - 11.1990 | 3382 | 76 | 103 | 2555 | Open off-road vehicle | |||||||||
|
PAJERO II (V3_W, V2_W, V4_W) 2.4 (V21W, V21C)
Production date from: 199603
Transmitter type: AT
|
04.1991 - 10.1999 | 7300 | 82 | 112 | 2351 | Closed off-road vehicle | |||||||||
|
PAJERO II (V3_W, V2_W, V4_W) 2.4 (V21W, V21C) Production date up to: 199405
Transmission type: MT
Left/Right Hand Drive Vehicle: For Left Hand Drive Vehicle
|
04.1991 - 10.1999 | 7300 | 82 | 112 | 2351 | Closed off-road vehicle | |||||||||
|
PAJERO II (V3_W, V2_W, V4_W) 2.5 TD 4WD (V24C, V24W)
Production date up to: 199703
|
12.1990 - 10.1999 | 3414 | 73 | 99 | 2477 | Closed off-road vehicle | |||||||||
|
PAJERO II (V3_W, V2_W, V4_W) 2.5 TD 4WD (V24C, V24W) Production date from - to: 199104 - 199805
Transmission type: MT
|
12.1990 - 10.1999 | 3414 | 73 | 99 | 2477 | Closed off-road vehicle | |||||||||
|
PAJERO II (V3_W, V2_W, V4_W) 2.5 TD 4WD (V24C, V24W) Production date up to: 199802
Transmission type: MT
Left/Right Hand Drive Vehicle: For Left Hand Drive Vehicle
|
12.1990 - 10.1999 | 3414 | 73 | 99 | 2477 | Closed off-road vehicle | |||||||||
|
PAJERO II (V3_W, V2_W, V4_W) 3.0 V6 24V (V43W, V23W) Transmitter type: AT
|
06.1997 - 10.1999 | 15261 | 130 | 177 | 2972 | Closed off-road vehicle | |||||||||
|
PAJERO II (V3_W, V2_W, V4_W) 3.0 V6 24V (V43W, V23W) Transmitter type: AT
|
06.1994 - 05.1997 | 4027 | 133 | 181 | 2972 | Closed off-road vehicle | |||||||||
|
PAJERO II (V3_W, V2_W, V4_W) 3.0 V6 4WD (V23W, V43W, V23C) Transmitter type: AT
|
12.1990 - 12.1995 | 3415 | 110 | 150 | 2972 | Closed off-road vehicle | |||||||||
|
PAJERO II Canvas Top (V2_W, V4_W) 2.4 (V41W, V21W, V21C) Production date from - to: 199603 - 199911
Transmitter type: AT
|
04.1991 - 04.2000 | 7301 | 82 | 112 | 2351 | Open off-road vehicle | |||||||||
|
PAJERO II Canvas Top (V2_W, V4_W) 2.4 (V41W, V21W, V21C) Production date up to: 199405
Transmission type: MT
Left/Right Hand Drive Vehicle: For Left Hand Drive Vehicle
|
04.1991 - 04.2000 | 7301 | 82 | 112 | 2351 | Open off-road vehicle | |||||||||
|
PAJERO II Canvas Top (V2_W, V4_W) 2.5 TD 4WD (V24C, V24W) Production date up to: 199703
|
12.1990 - 04.2000 | 3413 | 73 | 99 | 2477 | Open off-road vehicle | |||||||||
|
PAJERO II Canvas Top (V2_W, V4_W) 2.5 TD 4WD (V24C, V24W) Production date from - to: 199104 - 199805
Transmission type: MT
|
12.1990 - 04.2000 | 3413 | 73 | 99 | 2477 | Open off-road vehicle | |||||||||
|
PAJERO II Canvas Top (V2_W, V4_W) 2.5 TD 4WD (V24C, V24W) Production date up to: 199802
Transmission type: MT
Left/Right Hand Drive Vehicle: For Left Hand Drive Vehicle
|
12.1990 - 04.2000 | 3413 | 73 | 99 | 2477 | Open off-road vehicle | |||||||||
|
PAJERO II Canvas Top (V2_W, V4_W) 2.5 TD 4WD (V24C, V24W) Production date up to: 200002
Transmission type: MT
Left/Right Hand Drive Vehicle: For Right Hand Drive Vehicle
|
12.1990 - 04.2000 | 3413 | 73 | 99 | 2477 | Open off-road vehicle | |||||||||
|
PAJERO II Canvas Top (V2_W, V4_W) 3.0 V6 (V23W, v43W, V23C)
Transmitter type: AT
|
12.1990 - 12.1995 | 3416 | 110 | 150 | 2972 | Open off-road vehicle | |||||||||
|
PAJERO II Canvas Top (V2_W, V4_W) 3.0 V6 24V (V23W, V23C) Transmitter type: AT
|
06.1994 - 04.2000 | 4028 | 133 | 181 | 2972 | Open off-road vehicle | |||||||||
|
PAJERO SPORT I (K7_, K9_) 2.5 TD (K94W, K74T) Production date up to: 200712
|
07.2002 - | 16886 | 85 | 115 | 2477 | Closed off-road vehicle |
/
