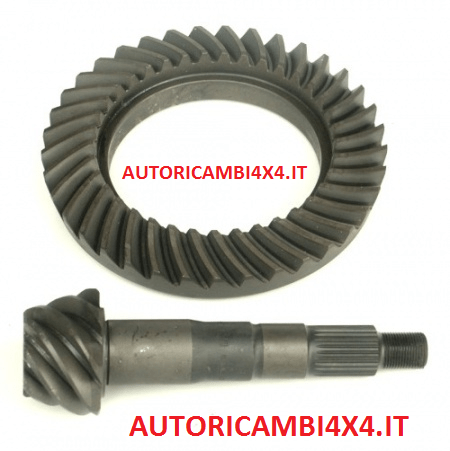

4.56 BEVEL GEAR FOR TOYOTA KZJ 70/73 REAR

4.56 BEVEL GEAR FOR TOYOTA KZJ 70/73 REAR
4.56 BEVEL GEAR FOR TOYOTA KZJ 70/73 REAR

Bevel gear with reduction ratio 4.56 ,

each bevel gear pair = 1 bridge

FOR TOYOTA KZJ 70/73

REAR

Made of high quality steel and heat treated for strength and wear resistance.

The gear teeth are manufactured using GLEASON cutting. Gleason technology produces an unprecedented level of precision and surface finish, allowing the gears to transmit more torque and improve fuel efficiency.

The increased precision and surface finish also allows for a quieter gear set.

--------------

It is important to carefully follow the assembly instructions (attached to the bevel gear) and the running-in procedure which is essential to prevent damage from overheating.

Any overheating or overloading during this break-in period can cause the oil film to break and cause damage to the pinion or crown.

PROCEDURE:

-After installation, drive gently for 20-30 minutes, then stop to allow the oil to cool for at least 2 hours.

-Avoid heavy acceleration for the first 800 km

-Do not tow or go off-road for the first 800km

-After running-in, replace the oil and check the bevel gear adjustment again.

This may seem unnecessary but it is very easy to damage the bevel gear before it is broken in.

New bevel gears generate excess heat as the teeth break in. Excess heat can damage the bevel gear cementation and thus damage them.

Carefully follow the instructions included with the bevel gears for correct assembly.

NEW

FOR INFO 3293821382
